SUCCESS Polished Clear Fused Silica Glass Plate Transparent Quartz Glass Plate Quartz Sheet

FOB Reference Price:Get Latest Price
$1.00 - $500.00 / Pieces | 1 Piece/Pieces Fused Silica Glass Plate Transparent Quartz Glass Plate Q (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Clear Quartz Plate, Plate/Sheet
Application:
Industry
Thickness:
1-100mm
Shape:
Square
Place of Origin:
Liaoning, China (Mainland), Liaoning, China (Mainland)
Brand Name:
Success
Model Number:
SUCCESS112101
Product name:
Transparent Quartz Glass Plate Quartz Sheet
Surface:
Polishing
Model No.:
SUCCESS112101
Operating Temperature:
1250℃
SoftenTemperature:
1730℃
MOQ:
1 Piece
Brand:
SUCCESS
Standard:
ISO9001 and CE
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week Fused Silica Glass Plate Transparent Quartz Glass Plate
Packaging & Delivery
Packaging Details
Professional and Safe package, inner by carton box, outer by wooden case.
Port
Dalian
Lead Time :
According to customer's demand
Product Description

SUCCESS Polished Clear Fused Silica Glass Plate Transparent Quartz Glass Plate Quartz Sheet

We are a manufacturer of Quartz glass fused silica plate/sheet .
Size&design: Accept customize according to different diameter ,thickness,length or sending your drawing.
Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.

Features

     PROPERTY                                      TYPICAL VALUES

Density
2.2x103 kg/m3
Dielectric Properties
(20°C and 1 MHz)
Hardness
5.5 - 6.5 Mohs' Scale 570 KHN 100
Constant
3.75
Design Tensile Strength
4.8x107 Pa (N/m2) (7000 psi)
Strength
5x107 V/m
Design Compressive Strength
Greater than 1.1 x l09 Pa (160,000 psi)
Loss Factor
Less than 4x10-4
Bulk Modulus
3.7x1010 Pa (5.3x106 psi)
Dissipation Factor
Less than 1x10-4
Rigidity Modulus
3.1x1010 Pa (4.5x106 psi)
Index of Refraction
1.4585
Young's Modulus
72GPa (10.5x106 psi)
Constringence (Nu)
67.56
Poisson's Ratio
0.17
Velocity of Sound-Shear Wave
3.75x103 m/s
Coefficient of Thermal Expansion
5.5x10 -7 cm/cm·°C (20°C-320°C)
Velocity of Sound/Compression Wave
5.90X103 m/s
Thermal Conductivity(20°)
1.4 W/m·°C
Sonic Attenuation
Less than 11 db/m MHz
Specific Heat(20°)
670 J/kg·°C
Permeability Constants(700°C)
(cm3 mm/cm2 sec cm of Hg)
Softening Point
1683°C
Helium
210x10-10
Annealing Point
1215°C
Hydrogen
21x10-10
Strain Point
1120 °C
Deuterium
17x10-10
Electrical Resistivity
7x107 ohm cm (350°C)
Neon
9.5x10-10

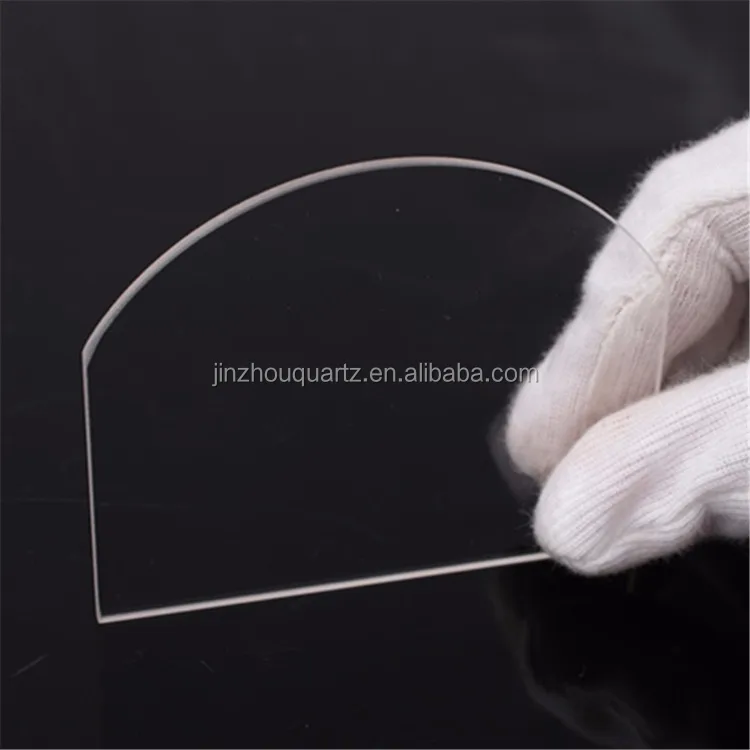

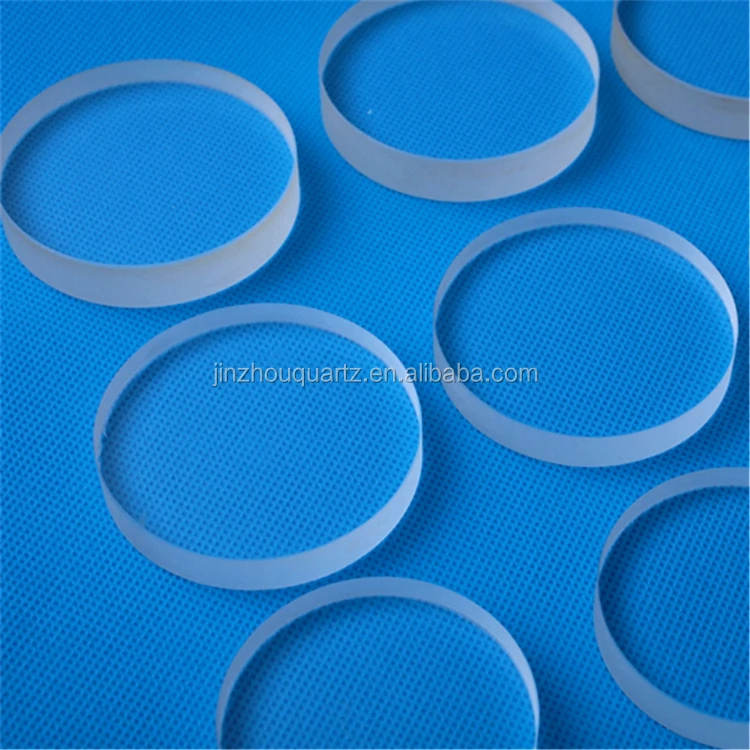

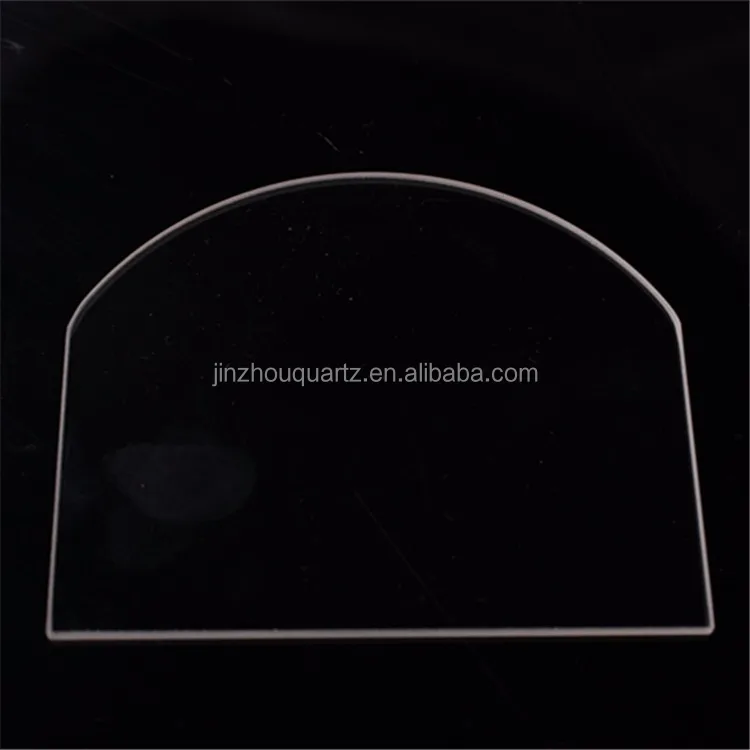

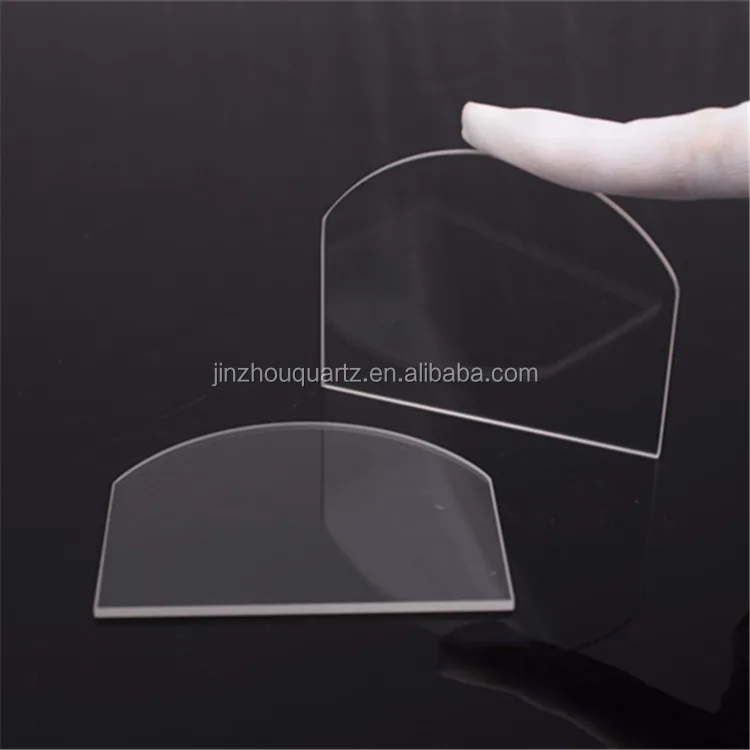

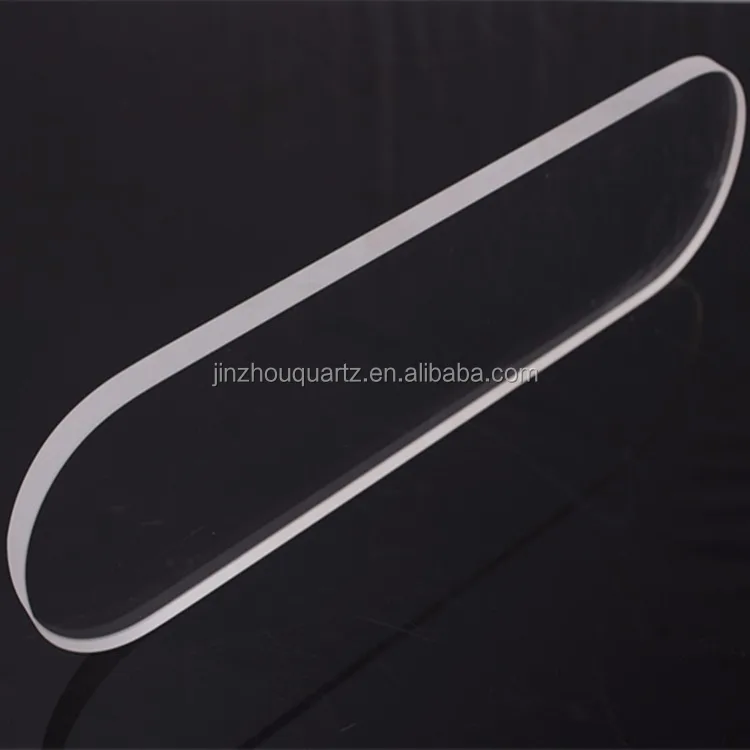

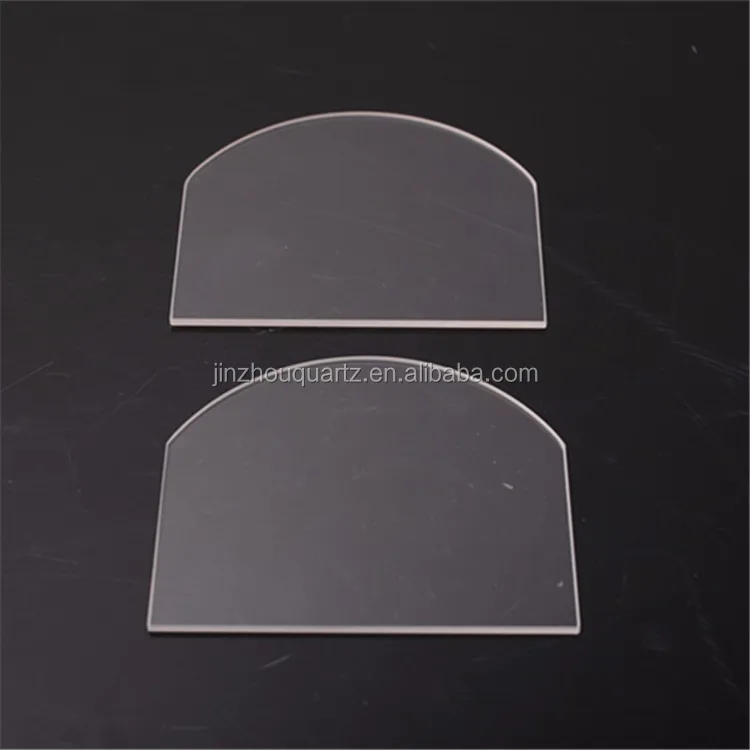

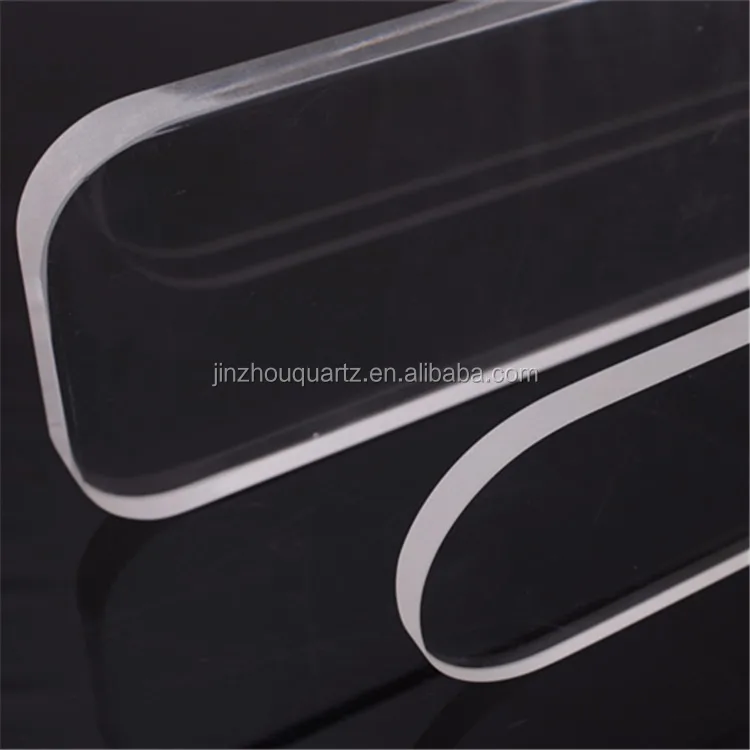

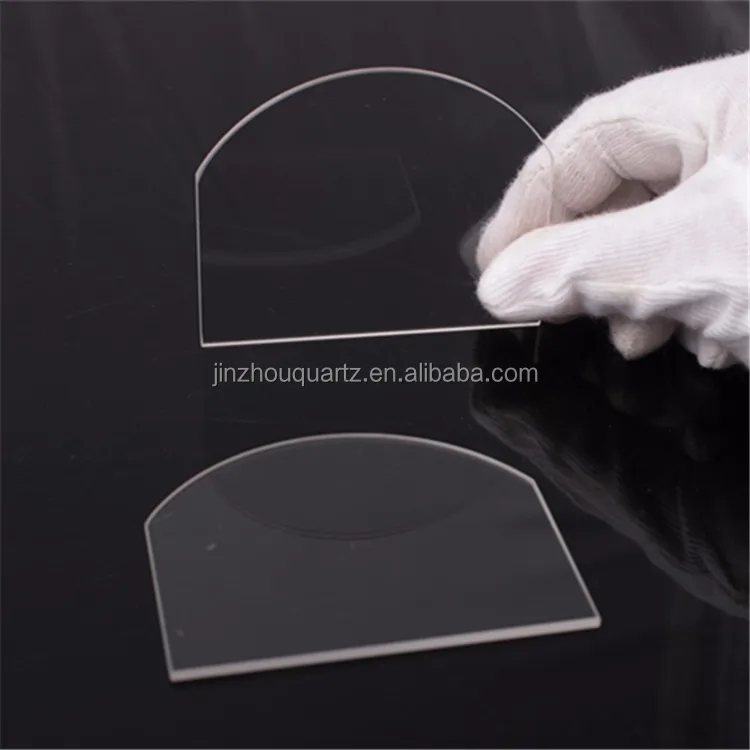

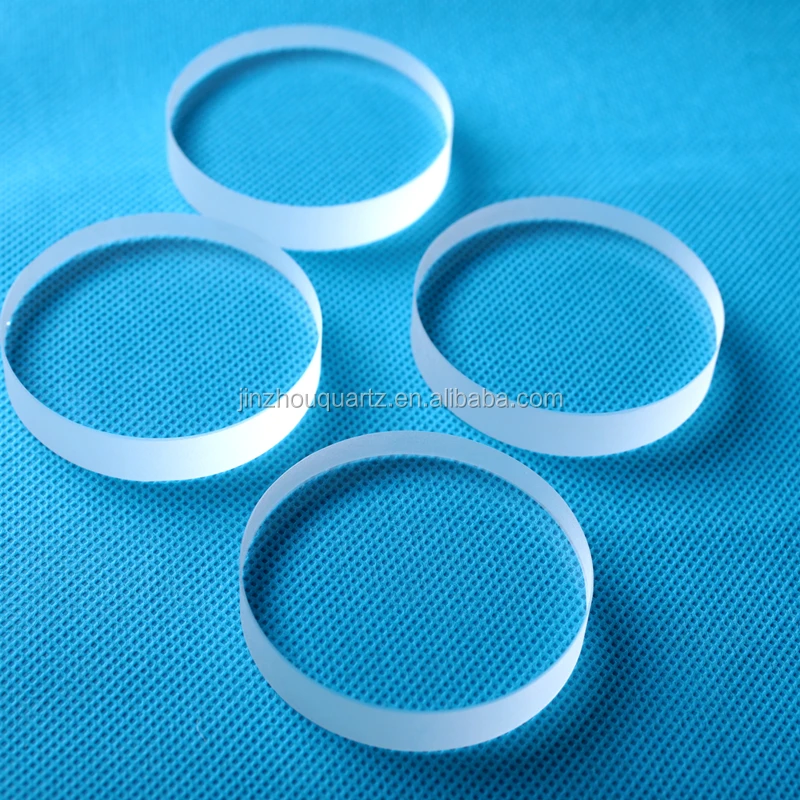

Detailed Images
Certifications
Packing & Delivery
Our Company

Jinzhou City Success Quartz Glass Factory was founded in 2004 year, the factory has so many senior engineer who worked in former Jinzhou city 155 factory which a famous quartz glass manufacturer in China before.

The company developed quickly these years, we have several production lines and strong technical forces, we will study and improve our process continually, we produce various kinds quartz glass products with the exquisite technology and best raw material for customer. The quartz glass products widely used in electric light source, optical fiber field, semi-conductor, laser, optical instrument, laboratory instrument, medical treatment, chemical industry, melting metal, national defense and so on.

We produce and export variety of transparent and quartz glass products, mainly including quartz glass tube, quartz glass plate,quartz glass crucible, quartz glass instrument, quartz heating lamp,UV germicidal lamp, quartz rod, different Infrared and Ultraviolet quartz glass and other relation quartz glass products. Especially we have a great achievement on Quartz singing products, we have our own brand CVNC®, Quartz singing products including Quartz crystal singing bowl, Quartz crystal singing forks,Quartz crystal singing pyramid, singing harp and so on.

Our business philosophy is survive on quality, reputation for development. The products widely sales to all of the world, such as America, Germany, France, Italy, Australia, Canada, Britain, Spain, Sweden, Mexico, Argentina, Chile, Russia,India, Japan and other too many countries.

We will provide best quality, best service and best price, warmly welcome your visit !
