Opaque and Sandblasted Quartz Plate Unclear Fused Silica Quartz Glass Sheet Fused Quartz Plate

FOB Reference Price:Get Latest Price
$1.00 - $500.00 / Pieces | 1 Piece/Pieces Milky White Quartz Plate Unclear Fused Quartz Glass Plate (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Opaque Quartz Plate, Plate/Sheet
Application:
Industry
Thickness:
1-100mm
Shape:
Square
Place of Origin:
Liaoning, China (Mainland), Liaoning, China (Mainland)
Brand Name:
Success
Model Number:
SUCCESS101701
Product name:
Unclear Fused Silica Quartz Glass Plate
Surface:
Sandblasted
Model No.:
SUCCESS101701
Operating Temperature:
1250℃
SoftenTemperature:
1730℃
MOQ:
1 Piece
Brand:
SUCCESS
Standard:
ISO9001 and CE
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week Milky White Quartz Plate Unclear Fused Quartz Glass Plate
Packaging & Delivery
Packaging Details
Professional and Safe package, inner by carton box, outer by wooden case.
Port
Dalian
Lead Time :
According to customer's demand
Product Description

Opaque Quartz Plate Milky White Quartz Plate Unclear Fused Silica Quartz Glass Sheet Fused Unclear Quartz Plate

We are a manufacturer of Quartz glass fused silica plate/sheet .
Size&design: Accept customize according to different diameter ,thickness,length or sending your drawing.
Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.

Features

     PROPERTY                                      TYPICAL VALUES

Density
2.2x103 kg/m3
Dielectric Properties
(20°C and 1 MHz)
Hardness
5.5 - 6.5 Mohs' Scale 570 KHN 100
Constant
3.75
Design Tensile Strength
4.8x107 Pa (N/m2) (7000 psi)
Strength
5x107 V/m
Design Compressive Strength
Greater than 1.1 x l09 Pa (160,000 psi)
Loss Factor
Less than 4x10-4
Bulk Modulus
3.7x1010 Pa (5.3x106 psi)
Dissipation Factor
Less than 1x10-4
Rigidity Modulus
3.1x1010 Pa (4.5x106 psi)
Index of Refraction
1.4585
Young's Modulus
72GPa (10.5x106 psi)
Constringence (Nu)
67.56
Poisson's Ratio
0.17
Velocity of Sound-Shear Wave
3.75x103 m/s
Coefficient of Thermal Expansion
5.5x10 -7 cm/cm·°C (20°C-320°C)
Velocity of Sound/Compression Wave
5.90X103 m/s
Thermal Conductivity(20°)
1.4 W/m·°C
Sonic Attenuation
Less than 11 db/m MHz
Specific Heat(20°)
670 J/kg·°C
Permeability Constants(700°C)
(cm3 mm/cm2 sec cm of Hg)
Softening Point
1683°C
Helium
210x10-10
Annealing Point
1215°C
Hydrogen
21x10-10
Strain Point
1120 °C
Deuterium
17x10-10
Electrical Resistivity
7x107 ohm cm (350°C)
Neon
9.5x10-10

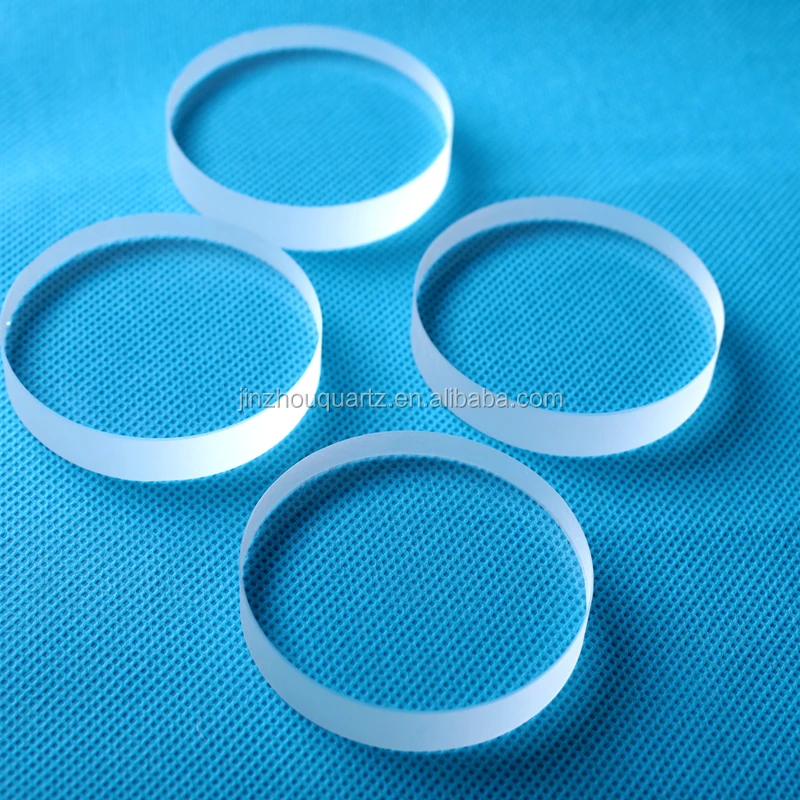

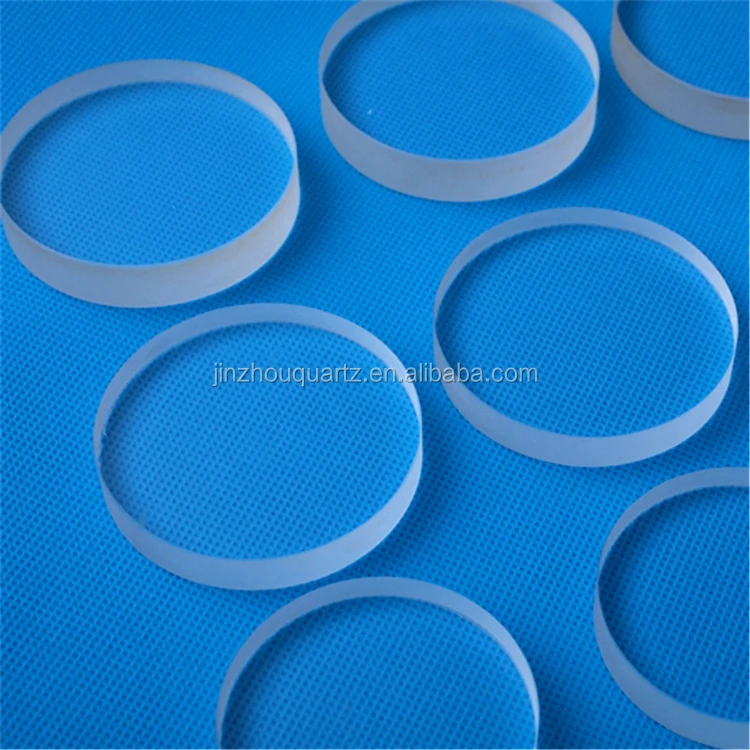

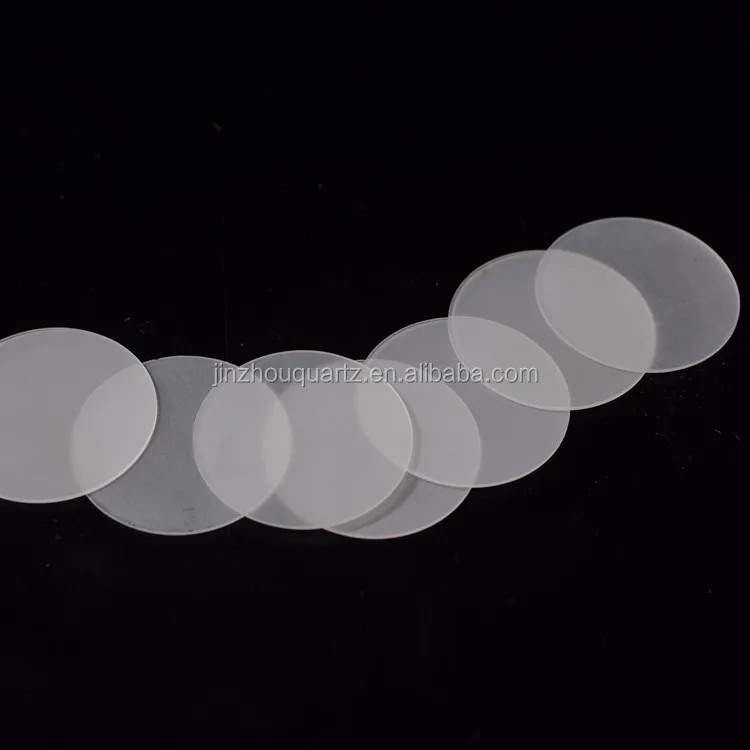

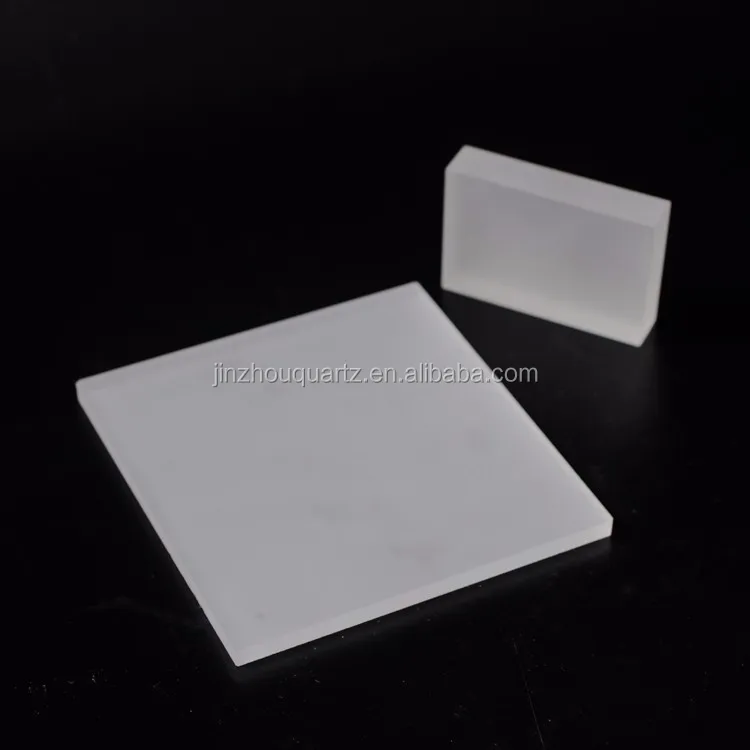

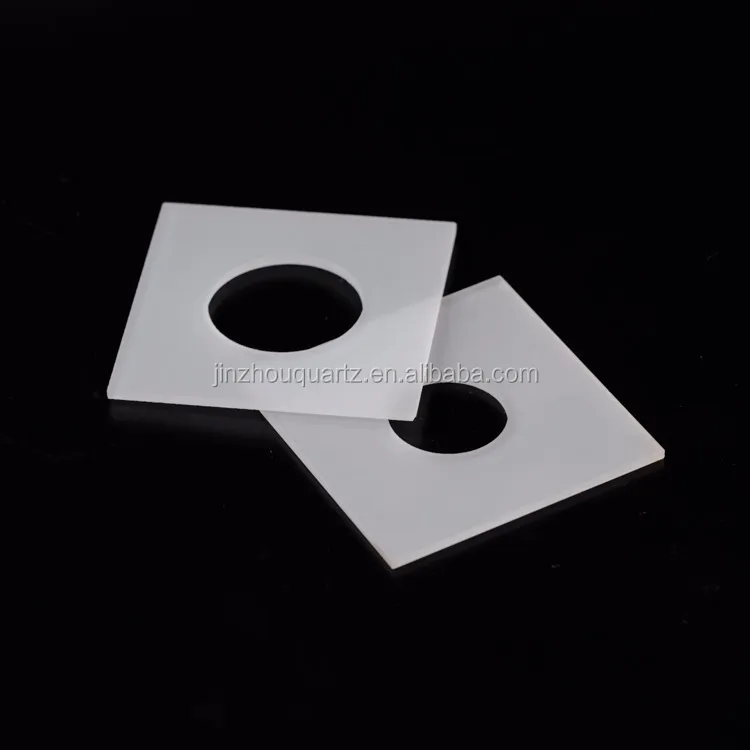

Detailed Images
